5 Catastrophic Consequences Of Installing Your HVAC Air Filter Direction Backward (And The Golden Rule To Never Forget)

• minute read
Contents

As of December 26, 2025, ensuring the correct air flow direction for your HVAC or furnace filter remains the single most critical, yet often overlooked, step in home maintenance. This seemingly minor detail—the direction of a simple arrow—is the frontline defense for your entire heating, ventilation, and air conditioning system, directly impacting its efficiency, longevity, and your indoor air quality. Installing an air filter backward is one of the most common and costly mistakes homeowners make, leading to a cascade of mechanical failures and significantly higher energy bills.

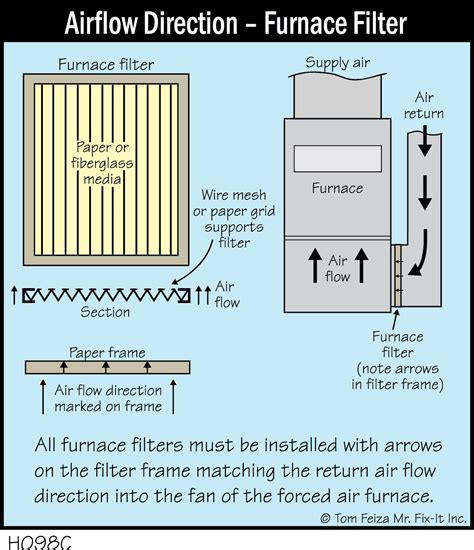

The core principle is universally simple: the directional arrow printed on the filter's frame must always point toward the blower motor or furnace unit. Failing to adhere to this "Golden Rule" disrupts the filter's engineered design, forcing air to flow against the intended structure of the filter media, which can lead to immediate performance degradation and long-term system damage. Understanding the mechanics behind the arrow is essential to prevent system strain, poor air quality, and unnecessary repair costs.

The Golden Rule of Air Filter Direction: Pointing to the Power

Every air filter, whether for a high-efficiency HVAC system, a standard furnace, or even a vehicle's cabin air system, is marked with a clear directional arrow. This arrow is your crucial guide, indicating the intended path of the airflow through the filter media. The rule is straightforward and applies across all brands and MERV ratings:

  • The Arrow Must Point TOWARD the Blower Motor: The blower motor is the component that pulls or pushes the air. The air filter is always positioned between the return air duct (where the dirty air enters) and the blower motor. Therefore, the arrow must point in the direction the air is traveling into the HVAC unit.
  • The Arrow Must Point AWAY from the Return Air Duct: Think of the return duct as the source of the dirty air. The filter is stopping the contaminants before they reach the internal components of the system.

For those filters that lack a visible arrow, or if the marking is unclear, a secondary check is often possible. Many pleated filters have a wire mesh or metal backing on one side; this reinforcing mesh is designed to face the blower motor, providing structural support against the high-velocity air pressure created by the fan. This mesh side should be the side the air exits from, meaning the air flows into the filter from the non-mesh side.

5 Catastrophic Consequences of a Backward Filter Installation

Installing an air filter in the wrong orientation is not just a minor oversight; it triggers a series of mechanical and efficiency issues that can severely compromise your heating and cooling system. The consequences range from immediate performance drops to expensive, long-term system failure.

1. Filter Media Collapse and Bypass Airflow

The primary design of a modern, high-efficiency filter (especially pleated filters) dictates that the air must enter through the loosely woven side and exit through the reinforced side (the side with the wire mesh). When installed backward, the high-pressure air hits the non-reinforced side first. This can cause the delicate filter media to collapse, tear, or warp, especially in high-MERV (Minimum Efficiency Reporting Value) filters. A collapsed filter not only becomes ineffective but also creates large gaps, allowing unfiltered air—known as bypass air—to circulate directly into your home and over your HVAC coils.

2. Severe Airflow Restriction and Pressure Drop

A backward filter immediately creates an abnormal pressure drop across the filter's surface. The filter media is designed to capture particles in a specific flow pattern. Reversing this flow causes the pleats to work against their design, leading to a dramatic increase in airflow restriction. This restricted airflow forces the blower motor to work harder, increasing energy consumption and causing the system to overheat or short-cycle. Over time, this constant strain significantly reduces the lifespan of the motor.

3. Frozen Evaporator Coil and System Damage

In air conditioning (AC) mode, restricted airflow is particularly dangerous. When the volume of air passing over the evaporator coil drops too low, the coil's temperature plummets below freezing. This leads to the formation of ice on the coil—a frozen evaporator coil. A frozen coil cannot absorb heat from the indoor air, resulting in a complete loss of cooling capacity. Running a system with a frozen coil can cause compressor failure, which is one of the most expensive HVAC repairs possible.

4. Reduced System Efficiency and Skyrocketing Energy Bills

The immediate result of restricted airflow and a straining blower motor is a sharp decrease in HVAC efficiency. The system must run longer and harder to achieve the desired temperature, directly translating to higher utility bills. This inefficiency is compounded by the fact that the filter is no longer effectively capturing dust, dirt, and allergens, leading to buildup on the heat exchange components and coils, further insulating them and reducing their ability to heat or cool the air.

5. Contaminant Release and Poor Indoor Air Quality

The structural integrity of a filter is crucial for particle retention. When a filter is installed backward, the accumulated debris and dust captured on the entry side can be dislodged and pushed through the media due to the reversed pressure. This effectively releases a plume of trapped contaminants back into the conditioned indoor air. The result is a sudden drop in indoor air quality, which can exacerbate respiratory issues for occupants and increase the dust buildup throughout the home and within the HVAC ductwork.

Beyond the HVAC: Air Filter Direction in Other Systems

The principle of correct airflow direction is not limited to your home's central heating and cooling system. The same critical rule applies to other filtration units you may encounter:

Vehicle Cabin Air Filters

The cabin air filter in your car, truck, or SUV is also directional. Just like the HVAC filter, it is designed to filter the outside air before it enters the passenger compartment. The arrow on the cabin filter must point toward the vehicle's interior (the cabin) and away from the outside air intake. Installing it backward can lead to reduced air conditioning performance, poor defrosting, and a noticeable drop in the overall effectiveness of the filtration, potentially straining the vehicle's internal fan motor.

Portable Air Purifiers and Dehumidifiers

Many modern portable air purifiers and dehumidifiers also utilize directional filters. In these smaller units, the filter is typically positioned where the room air is drawn in. The air flow arrow should point toward the unit's core mechanism (where the clean air is expelled or the moisture is removed). Always consult the unit's manual, but assume the filter is directional to maintain the unit's designed clean air delivery rate (CADR) and prevent motor burnout.

Final Checklist for Filter Replacement Success

To ensure you never make this costly mistake, follow this simple, up-to-date checklist for every filter replacement schedule:

  1. Locate the Arrow: Before unwrapping the new filter, find the clear, printed arrow on the cardboard frame.
  2. Identify the Blower: Open the filter compartment and identify the side where the air is pulled into the main unit (the furnace or air handler). This is the side with the blower motor.
  3. Point the Arrow: Insert the filter so the arrow points directly toward the blower motor.
  4. Check the Fit: Ensure the filter size is correct and there are no gaps around the edges, which would allow unfiltered air to pass through.
  5. Schedule the Next Change: Based on your filter's MERV rating, set a reminder for the next replacement (typically every 1–3 months for standard pleated filters).

Adhering to the correct air flow direction is the simplest, most effective step you can take to protect your HVAC investment, maintain peak energy efficiency, and ensure a healthy living environment.
